Sc_Foam

More Warmth. Less Bulk.

Sc_Foam is a proprietary thin, low density, soft and flexible insulation that delivers enhanced thermal performance.

The Science

Solarcore® foam uses the thermal advantages of NASA’s Aerogel technology, the lowest density thermal insulator on the planet, infused into various foam thicknesses to provide unmatched performance without the excessive loft found in standard foam insulations.

Solarcore Render Cube Aerogel Motion

How Can Sc_Foam Improve Your Products?

Our proprietary foam offers the highest CLO value in the market. It’s also safe and easy to use, with no shedding or particle loss. It can be cut, sewn, glued and bonded by factories that produce finished goods. Perfect for a wide range of industries and products.

Product Implementation Guides Available For Apparel and Footwear

Final
clo z

Why It's Better

Solarcore® delivers best-in-class thermal conductivity and CLO value. Testing results for Sc_Foam demonstrate its superiority vs. other legacy foams as well as industry leading lofted insulations.

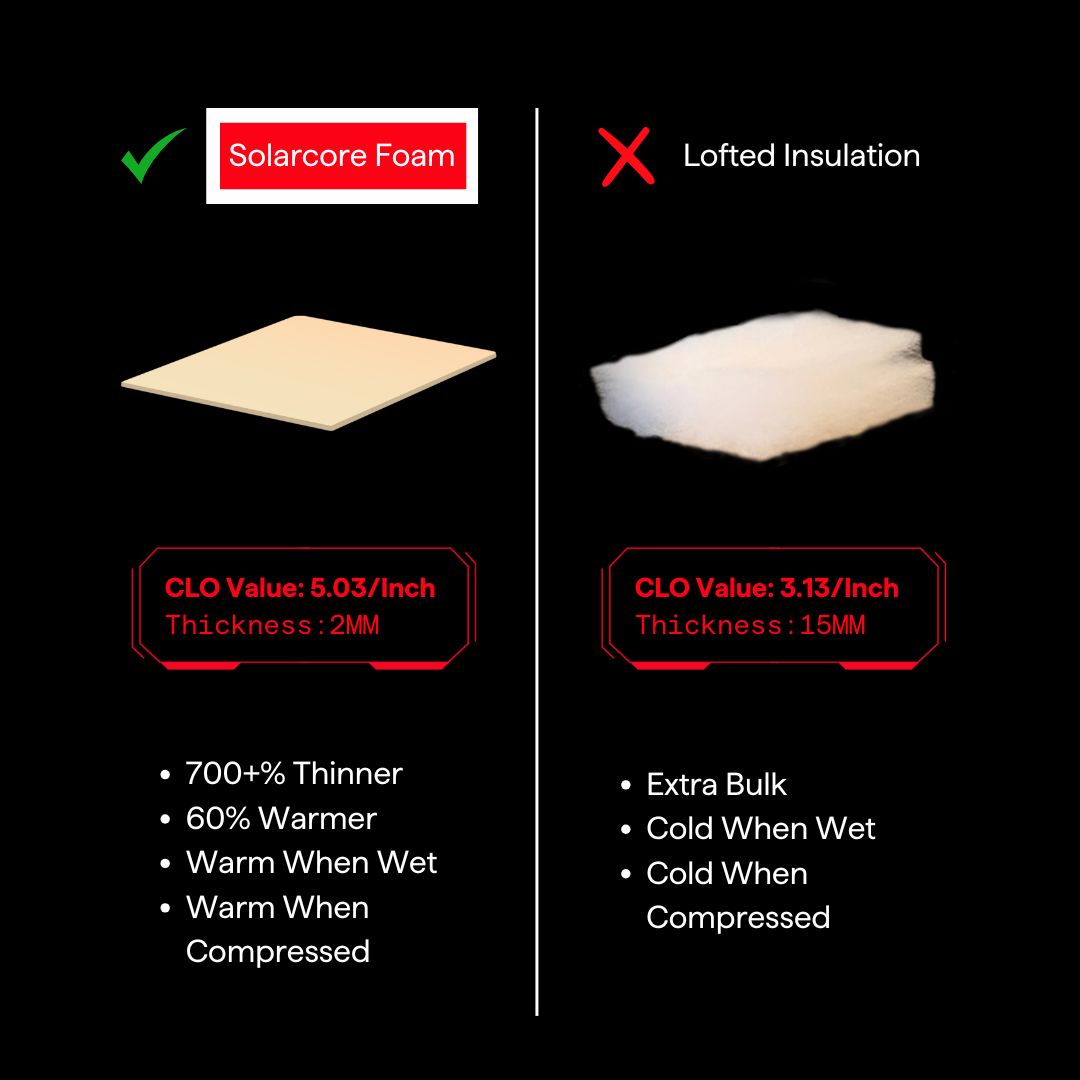

Solarcore® vs. Lofted Insulation

Solarcore® maintains superior thermal performance under compression, through wear and tear, and when wet.

Solarcore Comparative Ad
bestinclass cop2

Sc_Foam vs. Industry Leaders

Sc_Foam outperforms the most commonly used foams with the lowest thermal conductivity in its class. It also retains its conductive thermal properties even when compressed. This is a true advantage in real-world applications when thermal performance is no longer dependent upon loft, and why Solarcore® is a great choice for footwear, apparel, and accessories.

Sc_Foam

A Closed Cell Foam Infused with Aerogel

Available in various thicknesses from 2 mm – 10 mm, with perforated/breathable versions up to 3 mm. Sc_Foam is OKEO-TEX Standard 100 & PFAS Free, and completely free from shedding or particle loss.

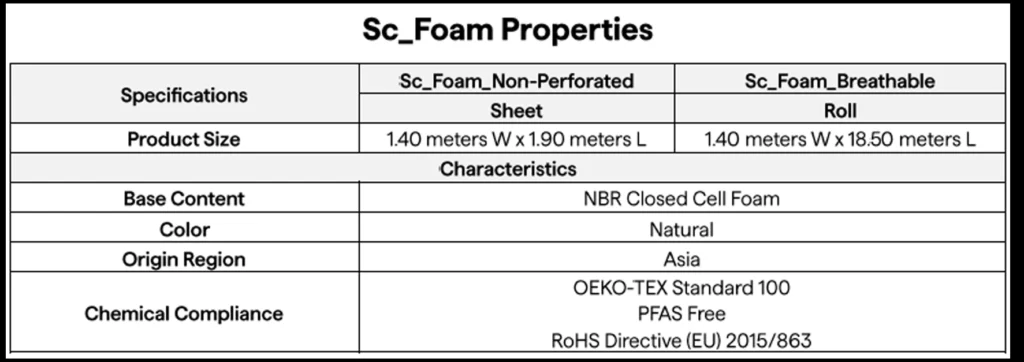

The Specifications

graph copy4 copy 3 e1760031919545
23.HUS .74316 BLACK copy 2

OEKO-TEX® STANDARD 100

Solarcore is granted the OEKO-TEX® STANDARD 100 certification and the right to use the trademark.

OEKO-TEX® STANDARD 100 certified products have been tested for harmful substances to protect your health.
This label certifies that every component of the product has been rigorously tested against a list of up to 350 toxic chemicals.

Scope: Sc_Foam, aerogel infused closed cell foam, perforated, made of nitrile butadiene rubber in natural tan.

Product Class: 1 – Annex 6

This certificate 23,HUS,74316 is valid until 30.09.2025.

Aerogels are a class of synthetic porous ultralight material derived from a gel, in which the liquid
component for the gel has been replaced with a gas, without significant collapse of the gel structure.
Aerogels have a porous solid network that contains air pockets, with the air pockets taking up the
majority of space within the material. The result is a solid with extremely low density and extremely
low thermal conductivity, exhibiting between 90 and 99.8% porosity.

Sc_Foam is a proprietary thin, low-density, soft, and flexible insulation that delivers enhanced thermal
performance. The base is a closed-cell nitrile rubber (NBR) foam, embedded with silica aerogel
particles embedded within the foam matrix for thermal performance. Those particles are mixed in at a
40% volume fraction. Sc_Foam is available in 2 mm, 3 mm, 5 mm, and 10 mm, and Sc_Foam
Breathable (Perforated) is available in 2 mm and 3 mm thicknesses.

Sc_Foam has best-in-class thermal conductivity value when compared to other insulations.
Sc_Foam maintains its low thermal conductivity under compression, unlike many other lofted
insulations that lose their insulation properties when compressed. Sc_Foam is flexible and maintains
an ultra-thin profile when compared to other insulations.

Sc_Foam Breathable is utilized mostly for apparel
and accessories, as the perforations help to pass moisture vapor from the interior (close to the skin) to
the exterior. However, it is not limited to these applications. Sc_Foam is utilized mostly for other
applications including footwear, medical containers, and shelters, but is not limited to these
applications.

33.2 mW/mK *What is Thermal Conductivity?
Thermal Conductivity is defined as the ability to transmit heat through a material, per degree kelvin
(Irrelevant of thickness). A lower thermal conductivity is better when describing insulation because
the material conducts less heat energy. Thermal conductivity is an intrinsic property, irrelevant to
thickness.

4.34 R-value/inch (normalized = per inch) *What is R-
value? R-value is a measure of thermal resistance, used commonly in footwear and buildings. The
higher the R-value, the greater the insulating effectiveness. The R-value depends on the type of
insulation, its thickness, and its density. When comparing the R-value be sure to compare the
Normalized R-value (per inch) or compare values of the same thickness.

4.94 CLO/inch? *What is CLO Value? CLO Value is a
measure of thermal resistance, used commonly in the textile industry for clothing. It is defined as the
amount of insulation required to keep a resting person comfortable in a normally ventilated room at a
temperature of 21°C / 70°F. A CLO value of 1 means an average adult can maintain thermal equilibrium
in an environment at 21 °C. The thermal performance of the insulation increases with the CLO value
meaning the higher the CLO value, the better the insulation.

Sc_Foam 2 mm and Sc_Foam 3 mm outperform tested leading apparel insulations by an average of
65.5% CLO Value. See the graph below for more details!

Sc_Foam outperforms tested leading foam by an average of 26.5% thermal conductivity. See the
graph below for more details!
